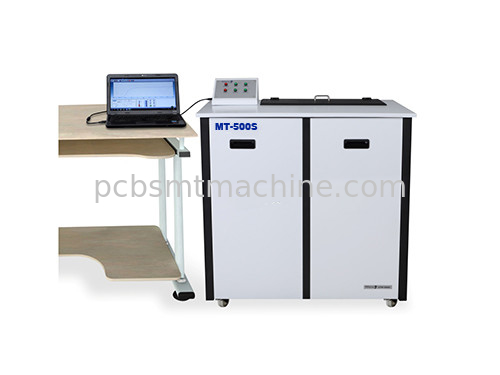

MT-500S is an automatic testing instrument used for testing the ion pollution content from the surface of PCB and PCBA. It can be used to test the ion pollution of PCBA, PCB, and copper-clad laminates. MT-500S is a static testing instrument and provides accurate test results following the ion pollution degree test method defined by IPC-TM-650.  MT-500S automatic testing instrument adopts a special cyclic extraction mode to extract the ionic pollutants on the surface of the product to be tested into the test solvent, and then accurately measure the total ion content of the product to be tested through a high-precision measuring probe and a sophisticated analysis system (Expressed in ug NaCl Eq), to obtain the average ion content per unit area (expressed in ug NaCl Eq/cm2), and then determine whether the ion content meets the required standard, as a means of shipment inspection, to provide for the improvement of production or cleaning processes Data reference.MT-500S Ion pollution testing process includes three processes: solvent regeneration, pollutant extraction, and pollutant measurement. MT-500S uses a high- purity, high-capacity ion exchange column. The solvent is regenerated according to the set threshold before each test to ensure that the ion content in the solvent meets the test requirements before each test.

Machine features:

1. High-precision AC measurement system, zero solvent polarization phenomenon, accurate test results.
2. A fully enclosed test environment reduces the impact of CO2 in the air on the test results.
3. Immersion spray cleaning to complete extraction of ionic pollutants.
4. Designed with an auto-calibration function, no need to carry out the complicated calculation
5. Special regeneration device, fast regeneration speed, and long service life.
6. Automatically liquid level adjustment according to the PCB size. Both large and small boards can be tested.
7. test slot dimension can be customized.
8. Simple and intuitive operating software. Fully automated testing process.
9. Comply with the international standards MIL-STD-2000A, DEF-STD-10/03, MIL-P-28809.

Machine specifications:

MT-500S specifications

Testing method: Static test

Level adjustment: yes

Test Range: from 0.01 to 20.00ug NaCL Eq/cm2

Resolution: 0.001uS/cm

Solvent capacity: 15 Liters

Test accuracy: 5%

Test slot size: L500 x W500 x H 45(mm)

Measurable product size: L480 x W400 x H45(mm)

Heating function: equipped

Maximum solvent temperature: 45°C

Power supply: 220V AC Single Phase, 50Hz, 6A

Weight: 78KG

Machine size: L890 x W430 x H1090(mm)
