압축된 공기는 기계 MT-3120을 청소하는 SMT 세정 장비 자동제진기를 강화했습니다

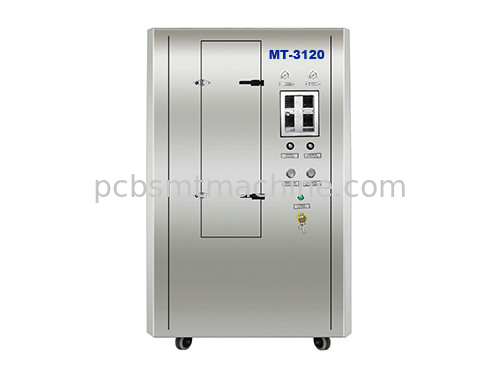

MT-3120 compressed air-powered general-purpose automatic screen cleaning machine is compatible for use for multiple types of printer screens. MT-3120 cleaning machine uses compressed air as its power source and designed with a 360°rotating jet cleaning method to efficiently clean the residual ink, silver paste, and other printing materials on the screen after printing to ensure the screen's cleaning effect; providing the best cleaning results to the plate surface and screen holes.  MT-3120 automatic screen cleaning machine is mainly used in the following industries for printer screen cleaning: 1. PCB, FPC, touch screen, thin-film circuit, new energy, solar energy, panel keys: ink, silver paste, insulating glue, and other screen printing screens, steel wire screens, composite screens.  2. IMD, decals, signs, plastics, etc. all use the screen printing industry.

Features of the machine:

1. Fully use compressed air as energy, no electricity required, no potential safety hazards such as explosion or fire.

2. The whole body is made of 304 stainless steel, which is resistant to acid and alkali cleaning fluid and is durable.

3. One-button operation, cleaning, rinsing, and drying are automatically completed according to the set time.

4. Different solutions can be used for cleaning and rinsing, which is more suitable for complex and precise cleaning requirements.

5. Multi-stage precision filtration system, the solution is used cyclically.

6. Equipped with automatic liquid adding and draining system.

7. The self-draining exhaust port is connected to the factory pipeline to eliminate the peculiar smell of the screen cleaning workshop, protect the working environment, and meet environmental protection requirements.

8. Reduce 10% printing defects, significantly improve printing quality, and reduce the chance of rework.

9. Improve the environment of the screen cleaning workshop, reduce the volatilization of solvents, and protect the health of workers.

10. Reduce 99% of the manual cleaning screen damage rate and extend the service life of the screen.

11. The cleaning solvent is recycled and used repeatedly, reducing cleaning costs, and reducing direct solvent emissions.

Machine specifications:

MT-3120 specification

Maximum screen size: L1200x1200x40(mm)

Tank capacity: 50L

Cleaning time: 3~5min

Rinsing time: 1~2min

Drying time: 3~5min

Air consumption: 800~1000L/min

Gas source: 0.5~0.7Mpa

Exhaust port size: Φ124 × H30 (mm)

Filtering system: 1mm/100um/1um three-stage filtration

Work process: Cleaning + rinsing + compressed air drying

Machine size: L1260 x W1450 x H 2050(mm)

Machine weight: 680KG
