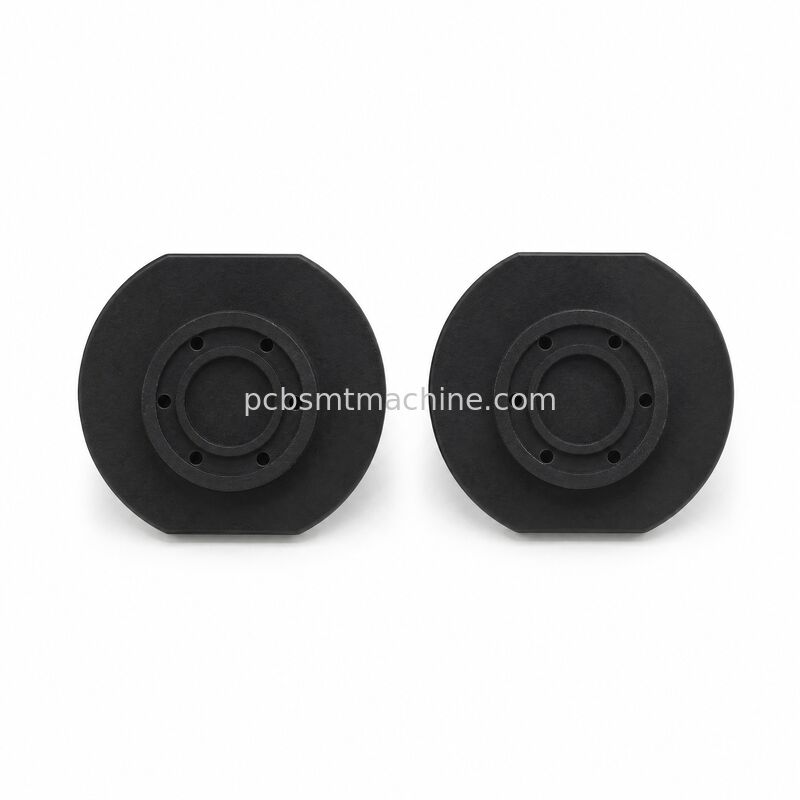

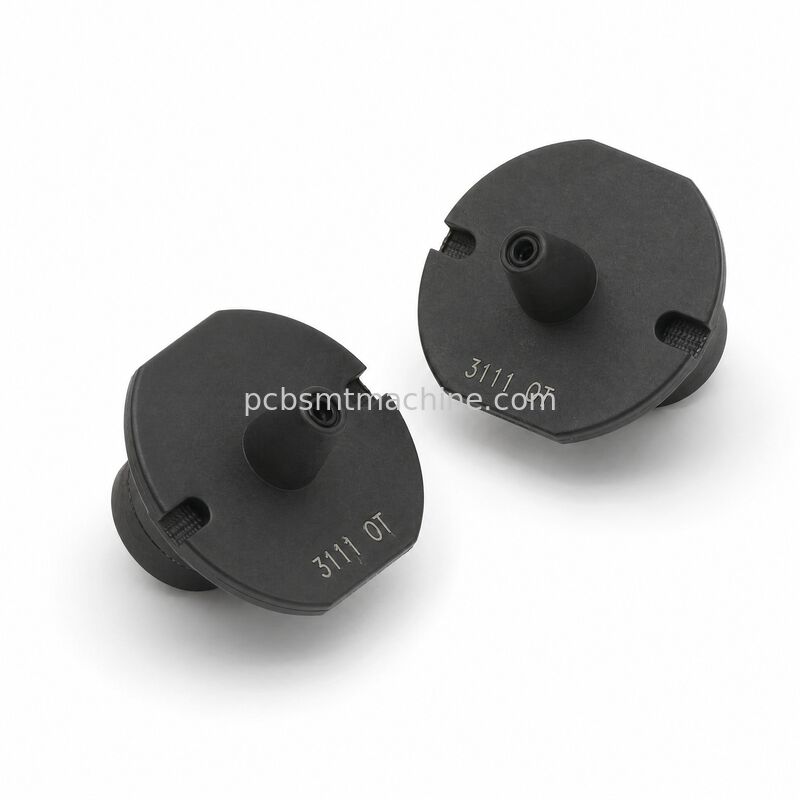

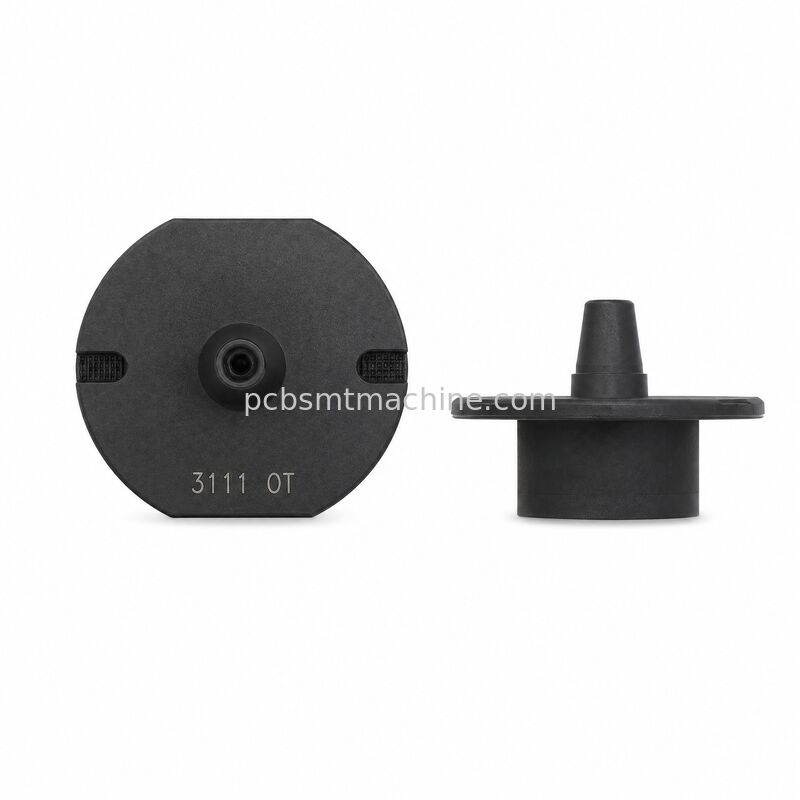

Panasonic H03 OEM Nozzle for SMT Captive Screw Ø 18mm (Mark: 3111 OT)

Panasonic H03 OEM Nozzle for SMT Captive Screw Ø 18mm (Mark: 3111 OT)

Panasonic SMT nozzle Ø 18mm

OEM SMT captive screw nozzle

Panasonic H03 nozzle with warranty

원래 장소:

중국

브랜드 이름:

Other

모델 번호:

PH03-CS18-3111OT

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
강조하다:

Panasonic SMT nozzle Ø 18mm

,

OEM SMT captive screw nozzle

,

Panasonic H03 nozzle with warranty

지불 및 배송 조건
최소 주문 수량
1
가격
USD
포장 세부 사항
판지 상자
배달 시간
8-10 영업일
지불 조건
L/C, D/A, D/P, 서부 동맹, T/T,
관련 제품
저희와 연락
86-755-23115005
지금 연락하세요
제품 설명

1.Product Introduction

This Panasonic H03 OEM custom nozzle (Engraved Mark: 3111 OT) is tailored for heavy odd-form components including LGA 4677 CPU socket and Ø18mm SMT captive screw. It fully replaces the traditional polyester tape-based handling process, enabling consumable-free direct pickup and placement.

Fully compatible with Panasonic NPM/CM402/CM602 pick-and-place machines, this tape-free SMT nozzle is widely applied in SMT production lines for server motherboards and industrial power modules, effectively solving the pain points of traditional tape process, such as high consumable cost and placement offset.

2.Core Specifications

Specification Details
Compatible Brand Panasonic
Compatible Work Head H03 (Also fit H04/H05)

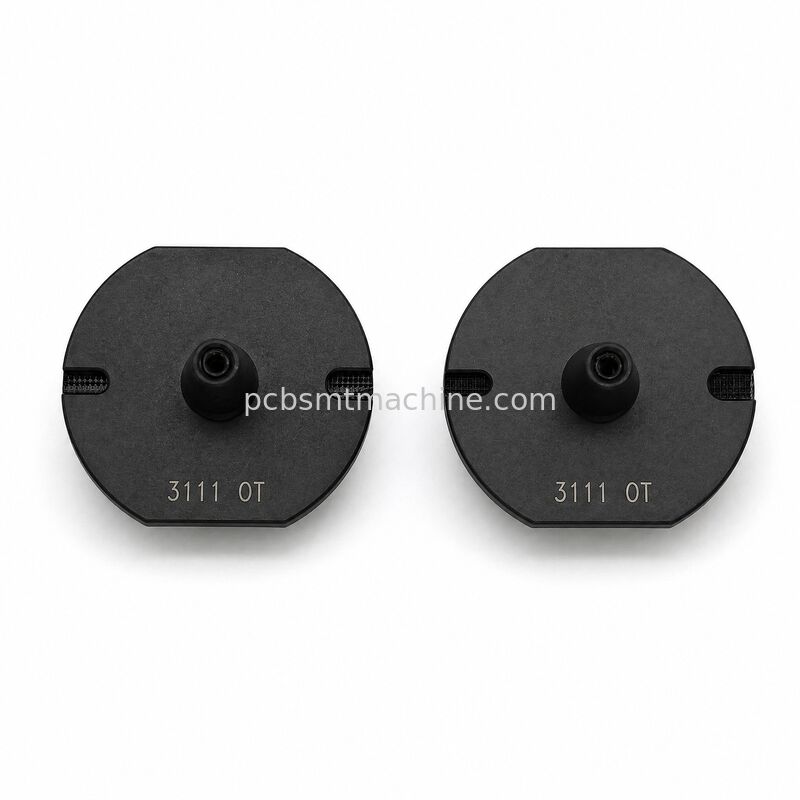

Custom Engraved Mark 3111 OT
Compatible Components LGA 4677 CPU Socket, Ø18mm SMT Captive Screw
Core Process Solution Tape-Free Direct Pickup
Main Material Antistatic Aluminum Alloy / PEEK Engineering Plastic
Compatible Machine Models Panasonic NPM/CM402/CM602


3.Core Advantages

  1. Consumable-Free Cost Reduction: Eliminate recurring tape purchasing cost, avoid adhesive residue contamination, and boost placement yield up to 99.9%
  2. Stable Customized Suction: Optimized suction structure for non-planar odd-form components, ensuring stable pickup without part dropping
  3. Drop-In Compatibility: Standard H03 interface, no machine modification required, complete process switch within 1 hour
  4. Fast Custom Delivery: 8-10 days lead time from demand confirmation to mass delivery, support full-line adaptation for multi-type components

4.Additional Notes

The engraved mark 3111 OT is the exclusive custom identifier for this nozzle, not Panasonic's official standard part number. This SMT odd form component nozzle has passed actual machine placement verification, ready to use out of the box. We also support customized modification for other components or machine models upon request.
