원래 장소:
일본
브랜드 이름:
Panasonic
인증:
Ce
모델 번호:
N610040782AA/KME 노즐 225C
1. Product Description

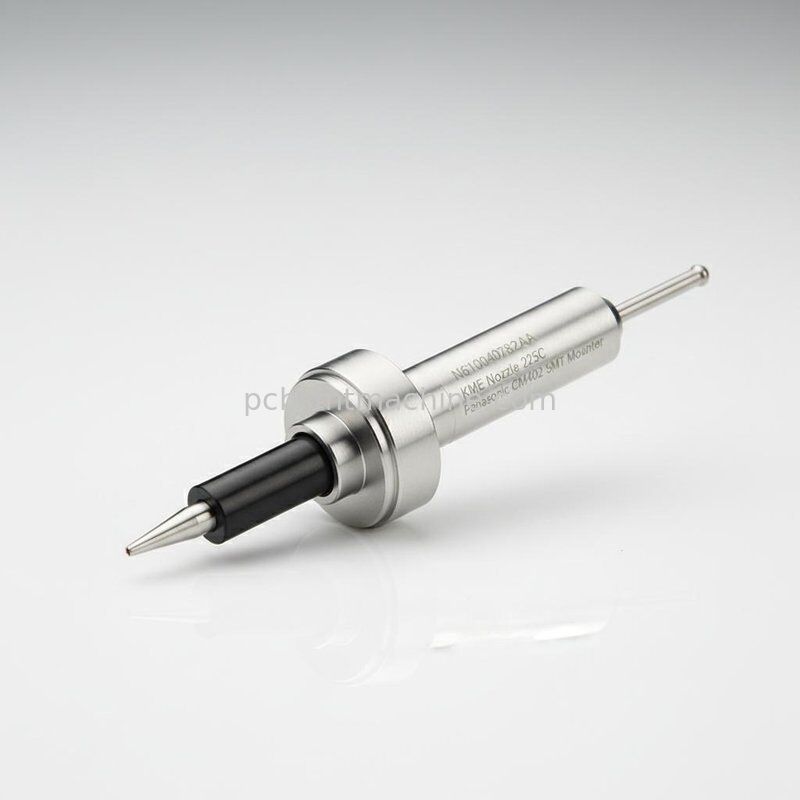

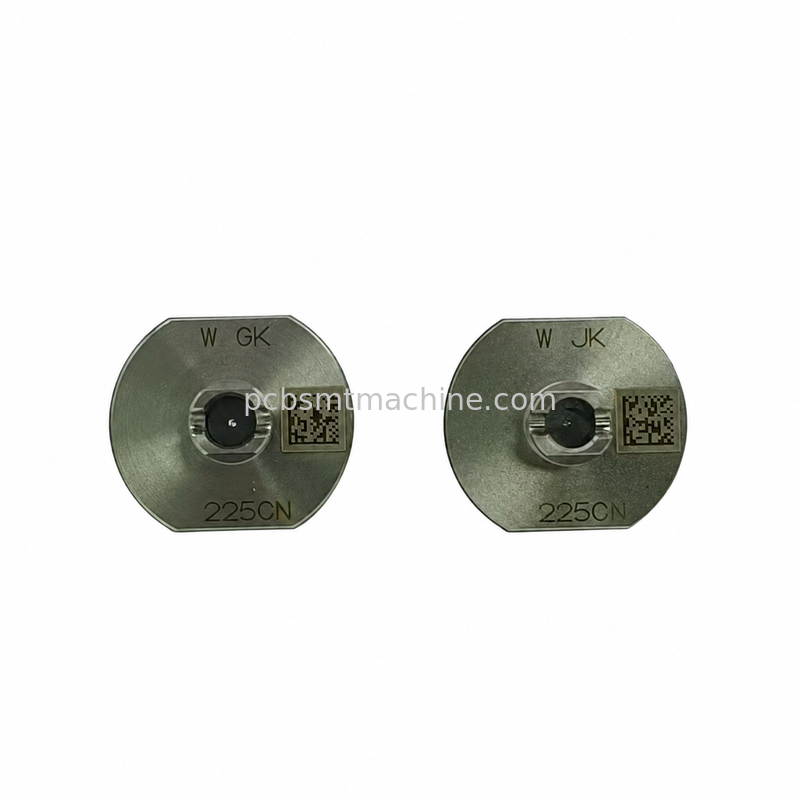

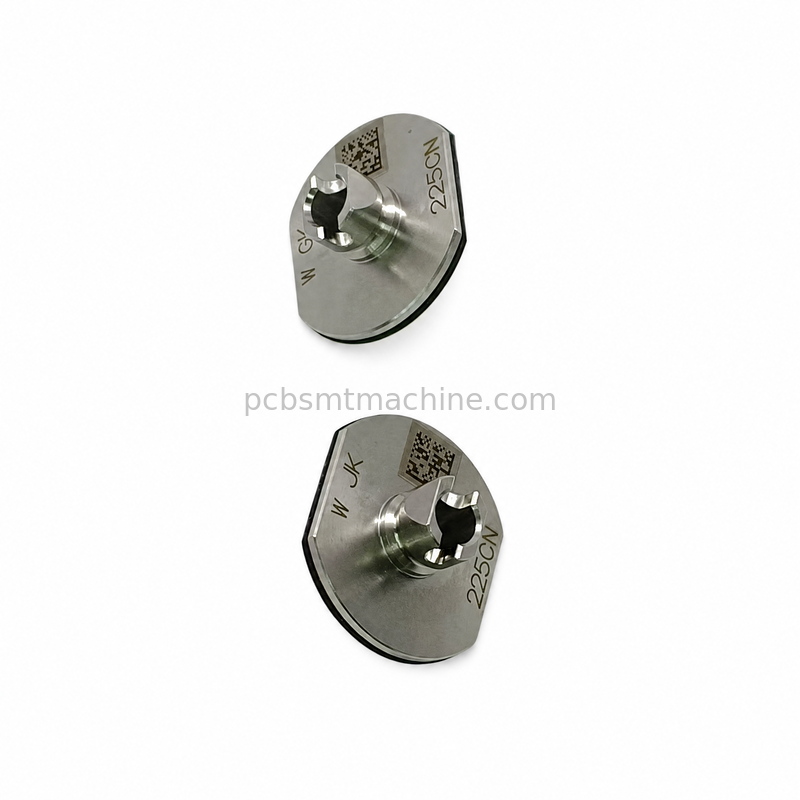

KME Nozzle 225C (Part Number: N610040782AA) is a high-precision compatible nozzle for Panasonic CM402 series SMT mounters, designed for high-speed and high-stability SMT production lines. The inner hole is polished by imported precision equipment to ensure micron-level concentricity and smooth surface. The main body is made of imported alloy steel with heat treatment, featuring great wear resistance, no deformation and no discoloration on the head after long-term use.

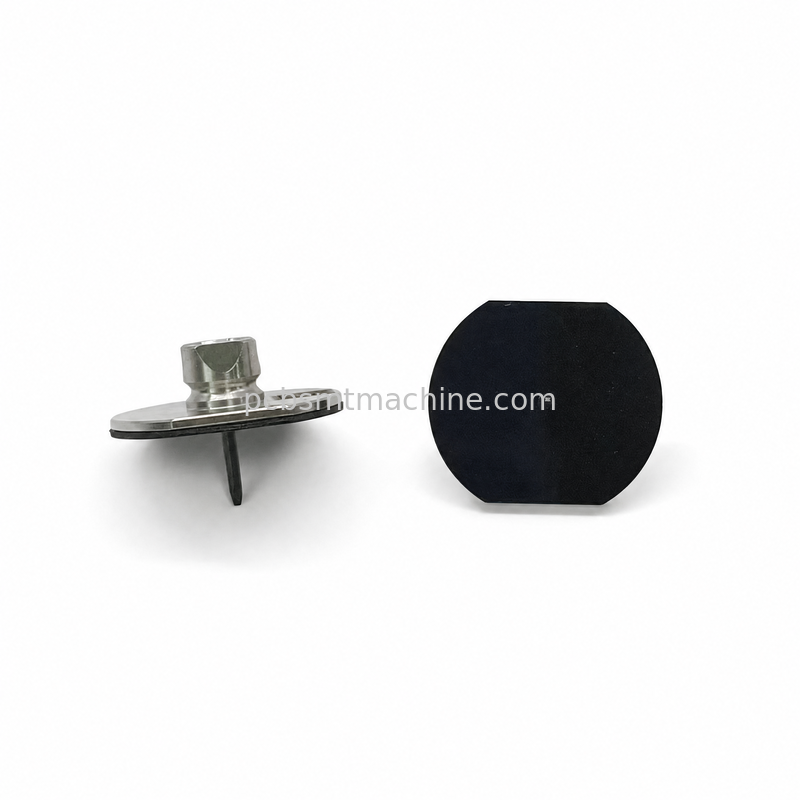

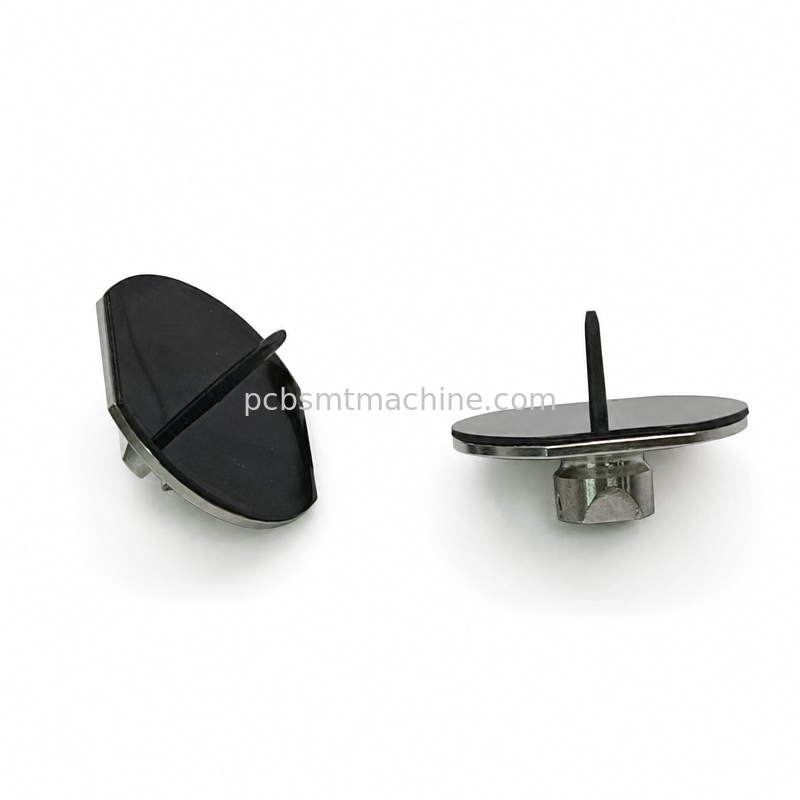

The reflector is coated with the same optical material as original parts with fully matched reflectivity. It can be directly interchanged with original nozzles without extra calibration, and will not affect mounting accuracy. It is suitable for picking and precision mounting of standard chip components such as 0603 and 1608, serving as a long-life and cost-effective replacement part for CM402 production lines.
2. Product Specifications
|
Item |
Specification |
|
Original Part Number |
N610040782AA |
|
Model |
KME Nozzle 225C |
|
Applicable Equipment |
Panasonic CM402 Mounter (Compatible with CM202 / CM602 series) |
|
Nozzle Material |
Imported heat-treated alloy steel + Precision ceramic inner hole + Optical reflector |
|
Applicable Components |
0603 (1.6×0.8mm), 1005 (1.0×0.5mm) and other chip components |
|
Inner Hole Precision |
Micron-level polishing, concentricity ≤ 0.01mm |
|
Reflector |
Original standard reflectivity, fully interchangeable |
|
Service Life |
Over 8 million pick cycles under standard working conditions |
|
Appearance Feature |
Anti-discoloration head, wear-resistant and anti-deformation |
3.Product Features
1. Precision Manufacturing Process
Inner hole: One-piece forming by imported precision grinding equipment. Smooth inner wall without burrs, reducing adsorption resistance and static electricity.
Main body: Adopts imported alloy steel and vacuum heat treatment. Hardness reaches HRC 58-62, wear-resistant and impact-resistant, no deformation during long-time high-speed operation.
Nozzle head: Adopts special anti-discoloration coating, avoiding yellowing and whitening, keeping stable appearance and performance.
2. Original Grade Quality & Interchangeability
The optical performance of the reflector is 100% consistent with original parts to guarantee accurate component recognition. It can be directly replaced with original nozzles without additional commissioning.
All products are fully inspected before delivery, including optical test and vacuum adsorption test, to ensure no cracks, deformation and uniform suction.
3. Compatibility & Production Line Value
Optimized exclusively for Panasonic CM402 high-speed mounter. Perfect for mainstream components like 0603 and 1005, featuring stable mounting and low component drop rate.
Long service life design reduces downtime for part replacement, cuts maintenance costs and improves overall equipment effectiveness (OEE).
4. Total Solution & Cooperation Service
One-stop supply for full series CM402 nozzles: 110, 120, 130, 225C, 235C and more models.
Support bulk order, OEM service and long-term supply contract with stable price and fast lead time.
Provide professional training on nozzle usage and maintenance to extend service life and reduce consumption.
4. FAQ
Q1: Is this original part or replacement part?
A: N610040782AA is Panasonic standard part number. KME Nozzle 225C is manufactured strictly following original drawings and processes. It features the same quality and full interchangeability with original nozzles.
Q2: Can it be used on other mounter models besides CM402?
A: Mainly designed for CM402. It is also fully compatible with CM202 and CM602 series mounters with universal installation and recognition.
Q3: What are the advantages compared with ordinary domestic nozzles?
A: It has higher inner hole precision, excellent wear resistance and anti-discoloration performance. The reflector ensures stable recognition. The service life reaches more than 8 million pick cycles, bringing lower comprehensive cost in long-term use.
Q4: Do you accept small orders? What is the lead time?
A: We accept orders starting from 1 piece. In-stock goods can be delivered within 3-5 working days. Lead time and price can be negotiated for bulk orders.
Q5: How do you guarantee product quality?
A: Every nozzle undergoes strict full inspection including appearance, dimension, vacuum adsorption and optical test before shipment. We provide 12-month warranty. Return or replacement is available for non-artificial quality issues.문의사항을 직접 저희에게 보내세요
