원래 장소:
중국
브랜드 이름:
OEM
인증:
Ce
모델 번호:
KME OEM 노즐 1045CN
1. Product Introduction

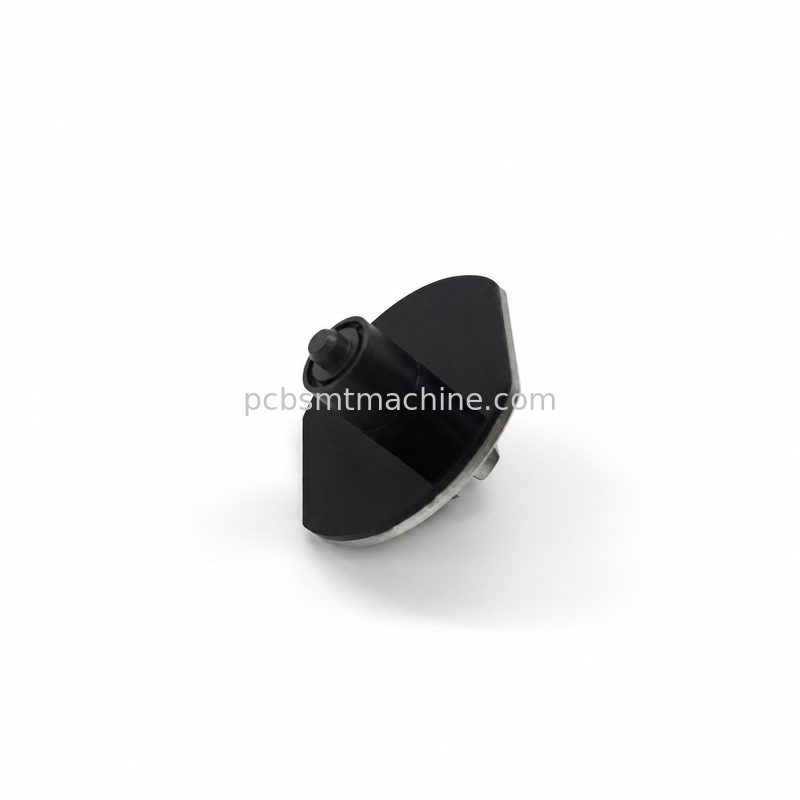

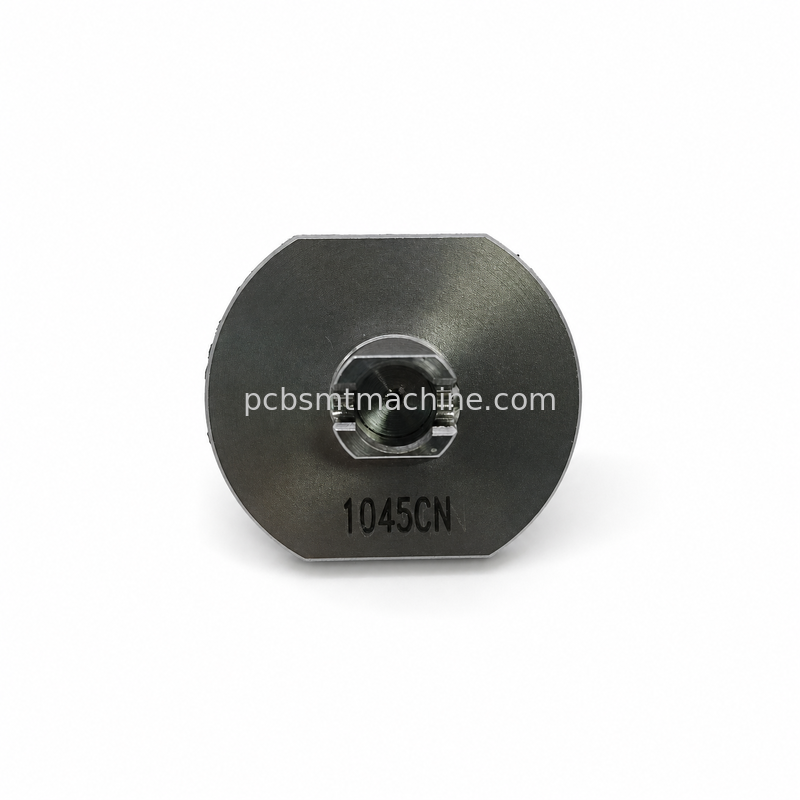

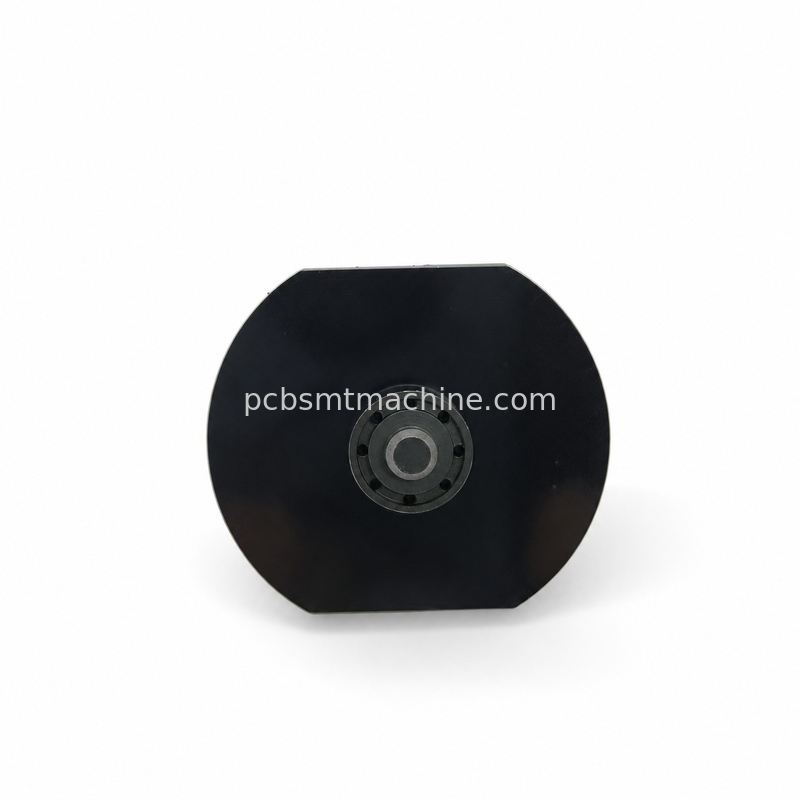

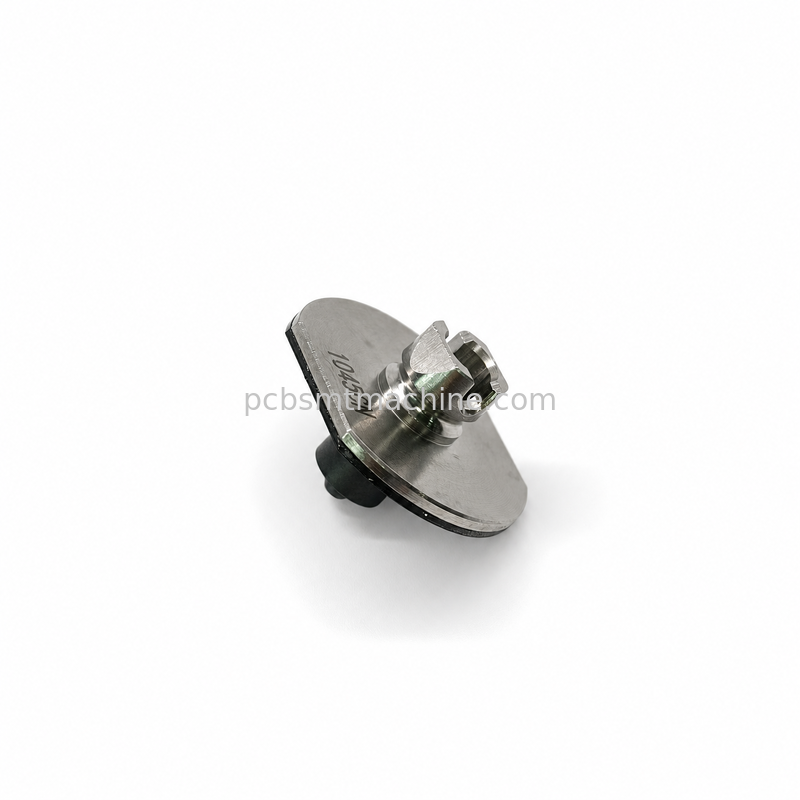

Panasonic KME Custom Nozzle 1045CN – High‑Precision SMT Nozzle
The Panasonic KME Custom Nozzle 1045CN is a tailor-made CN‑series component nozzle developed to match Panasonic/KME modular placement machines. As a professional SMT pick‑and‑place nozzle, it features stable vacuum suction and outstanding positioning accuracy, perfectly suitable for handling small‑to‑medium electronic parts in high-speed SMT production lines.
This model belongs to the CN‑series nozzle family, together with 225CN, 230CN and 235CN. It is fully compatible with Panasonic modular heads and widely applicable to equipment including CM402, CM602, NPM, BM221, BM123 and other KME modular platforms. Manufactured with customized craftsmanship, it is a cost-effective alternative part to keep your SMT production running efficiently and stably.
2.Product Specifications
|
Parameter |
Specification |
|
Brand Adaptation |
Panasonic / KME |
|
Model |
1045CN (CN‑series) |
|
Type |
Custom SMT pick‑up / placement nozzle |
|
Application Machines |
CM402, CM602, NPM, BM221, BM123, KME modular platforms |
|
Compatible Head |
Panasonic modular placement head |
|
Component Range |
Small to medium electronic components |
|
Material |
Hardened steel body + ceramic tip (wear‑resistant, anti‑static) |
|
Function |
Precision vacuum suction & placement in high‑speed SMT assembly |
|
Product Property |
Custom processed replacement part |
|
Series siblings |
225CN, 230CN, 235CN (for different component sizes) |
3.Product Features
High‑Precision Custom Manufacturing Process
Adopt hardened stainless steel and ceramic tip, processed by CNC precision machining and professional heat treatment.
Strict size calibration ensures stable vacuum performance, with placement accuracy up to ≤ ±0.02 mm.
Equipped with anti-static surface coating to prevent static damage to components during production.
Wide Compatibility & Flexible Application
1045CN is designed to fit Panasonic CM/NPM/BM series and all KME modular placement machines.
Matched with 225CN/230CN/235CN in the same series, it supports components ranging from 0402 chips to medium ICs.
Standard interface design enables direct replacement without any modification.
Reliable Quality & Cost-Effective Choice
Customized production follows industry standards, with stable performance and long service life.
Ready stock available, MOQ is 1 piece, fast delivery to Europe, America and Southeast Asia.
Reasonable price helps enterprises cut down spare parts procurement costs.
Custom Service & Whole-Line Cooperation Solution
We supply full range of CN‑series nozzles including 1045CN/225CN/230CN/235CN, as well as other supporting Panasonic SMT spare parts.
Provide personalized custom nozzle service for special-shaped and special-size components.
Support long-term strategic cooperation with SMT factories, offering one-stop procurement service for whole-line spare parts.
4. FAQ
1: What is 1045CN nozzle used for?
A: The 1045CN is a custom CN‑series pick‑and‑place nozzle for CM402/CM602/NPM/BM221/BM123 machines, used to grip and mount small‑to‑medium components in SMT assembly.
Q2: Is 1045CN compatible with my Panasonic NPM machine?
A: Yes. This custom 1045CN nozzle is fully compatible with Panasonic NPM, CM402, CM602, BM221, BM123 and other KME modular devices.
Q3: What’s the difference between 1045CN and 225CN/230CN/235CN?
A: All items belong to CN‑series custom nozzles and differ in applicable component sizes. 1045CN is for medium components, while 225CN/230CN/235CN are for smaller or larger parts.
Q4: Is this original Panasonic part?
A: This is a professionally custom-made replacement nozzle, not original factory part. It is manufactured according to industry standards and has excellent matching performance.
Q5: How to maintain the 1045CN nozzle for longer life?
A: Clean dust and solder paste with alcohol regularly, check the wear condition of ceramic tip frequently, and keep stable vacuum pressure during operation.
