원래 장소:
중국
브랜드 이름:
OEM
인증:
Ce
모델 번호:
CKD STR2M10-5-0-FL424230
1.Product Description

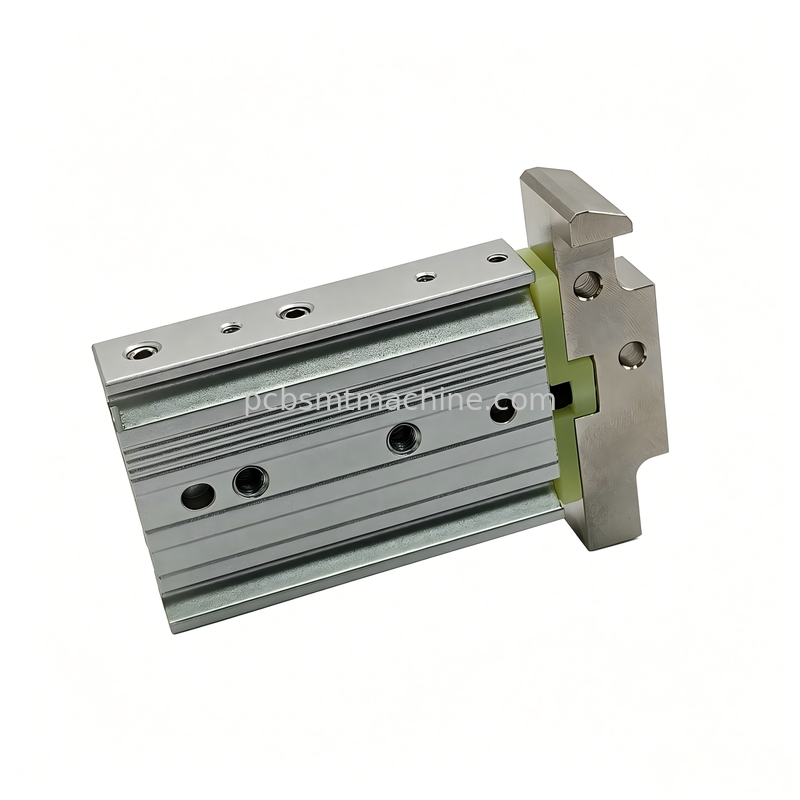

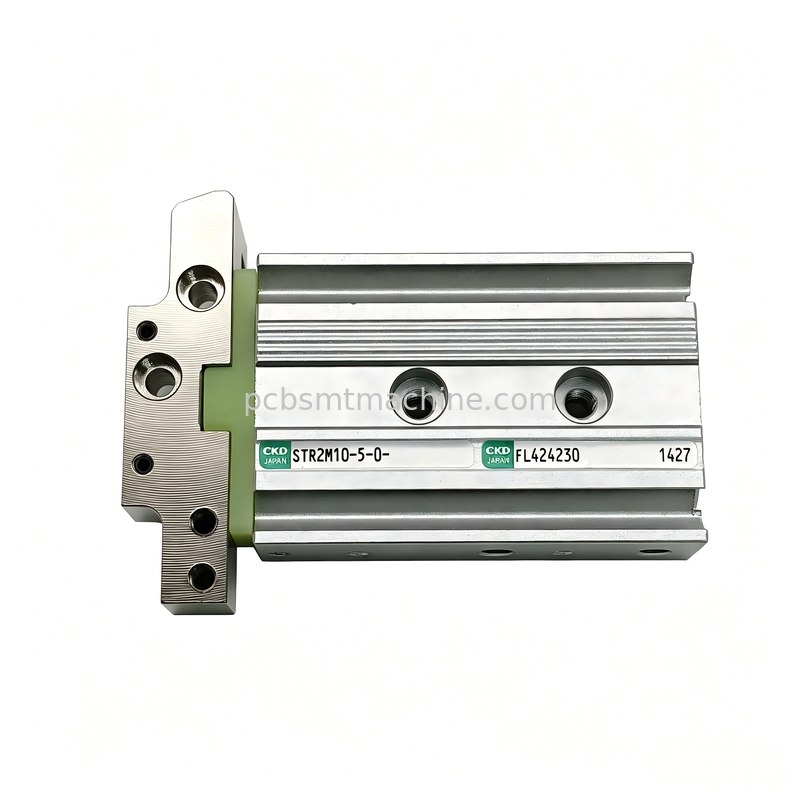

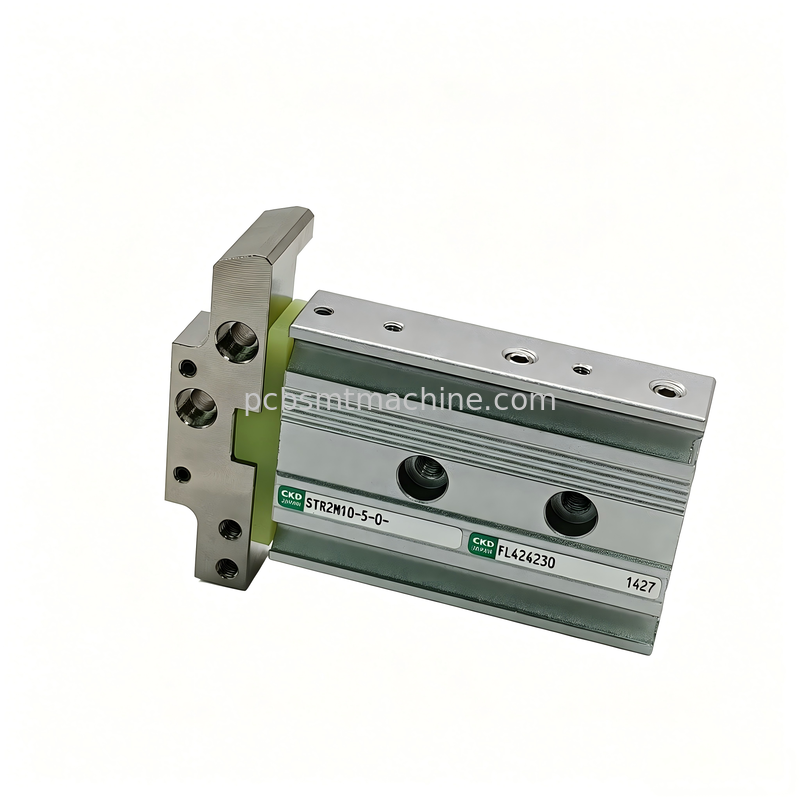

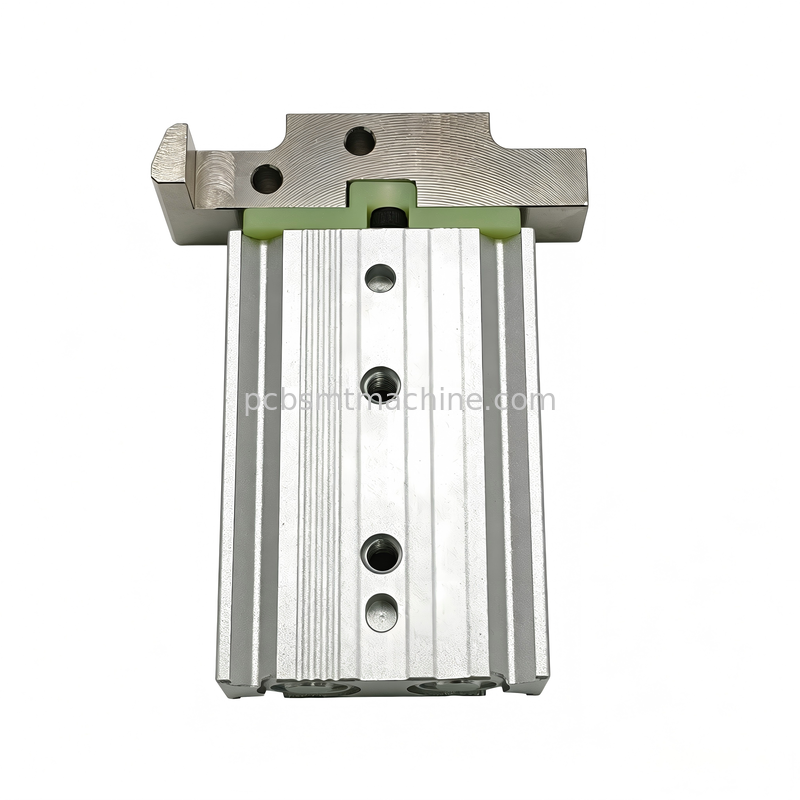

This CKD STR2M10-5-0-FL424230 is a compact twin rod cylinder with φ10mm bore and 5mm fixed stroke. Featuring sliding bearing and excellent non-rotating performance, it delivers stable power for SMT equipment and precision automation. Marked with original part number FL424230, it is durable and easy to install in limited spaces.
2.Product Specifications
| Item | Specification |
| Model | STR2M10-5-0-FL424230 |
| Action Type | Double acting |
| Bore | φ10 mm |
| Stroke | 5 mm (non-adjustable) |
| Bearing Type | Sliding bearing |
| Thrust (0.7MPa) | 55 N |
| Max Working Pressure | 0.7 MPa |
| Port Size | M5 |
| Rotation Tolerance | ±0.4° |
| Part No. | FL424230 |
3.Key Features
High precision non-rotating design, stable operation for precision positioning
Compact structure, fits narrow installation space of automation devices
Double rod structure offers strong and balanced thrust
Sliding bearing ensures smooth movement and long service life
Original CKD part, reliable quality with full traceability
4.FAQ
Q1: What applications is this cylinder suitable for?
A1: It is widely used as guided cylinder for SMT printers, PCB positioning and workpiece clamping.
Q2: What does the letter M stand for?
A2: M refers to sliding bearing, designed for standard precision working conditions.
Q3: Is this a double acting pneumatic cylinder?
A3: Yes, it works with bidirectional thrust for push and pull tasks.
Q4: What is FL424230?
A4: It is the original factory order number of this CKD cylinder.
