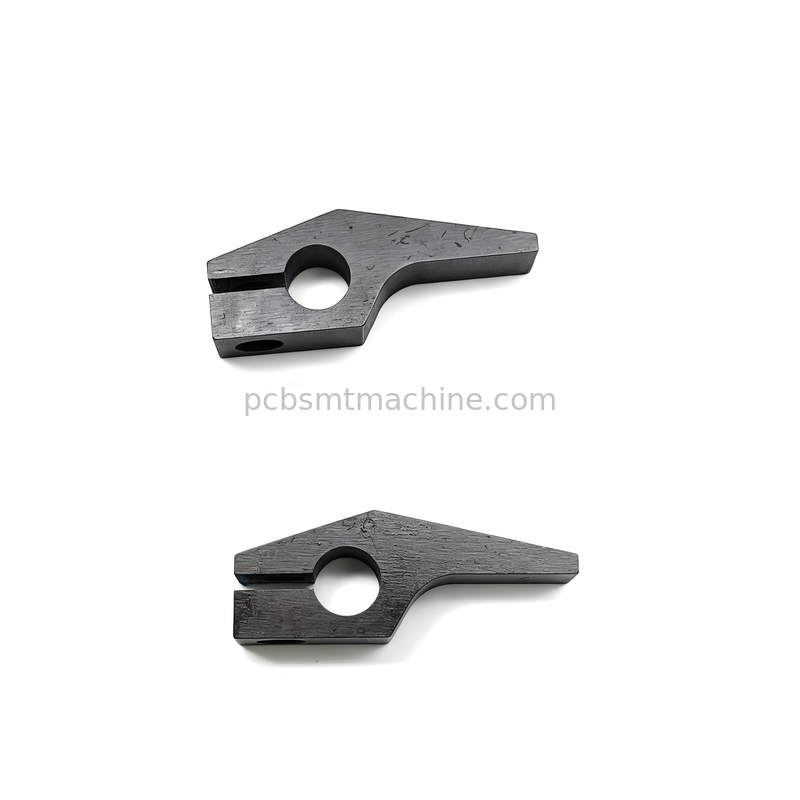

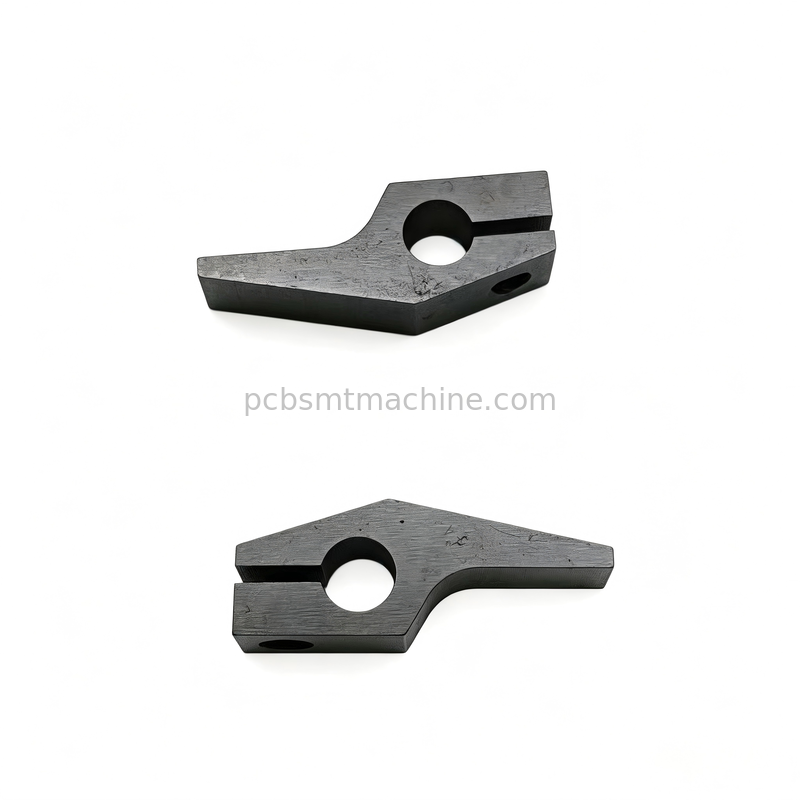

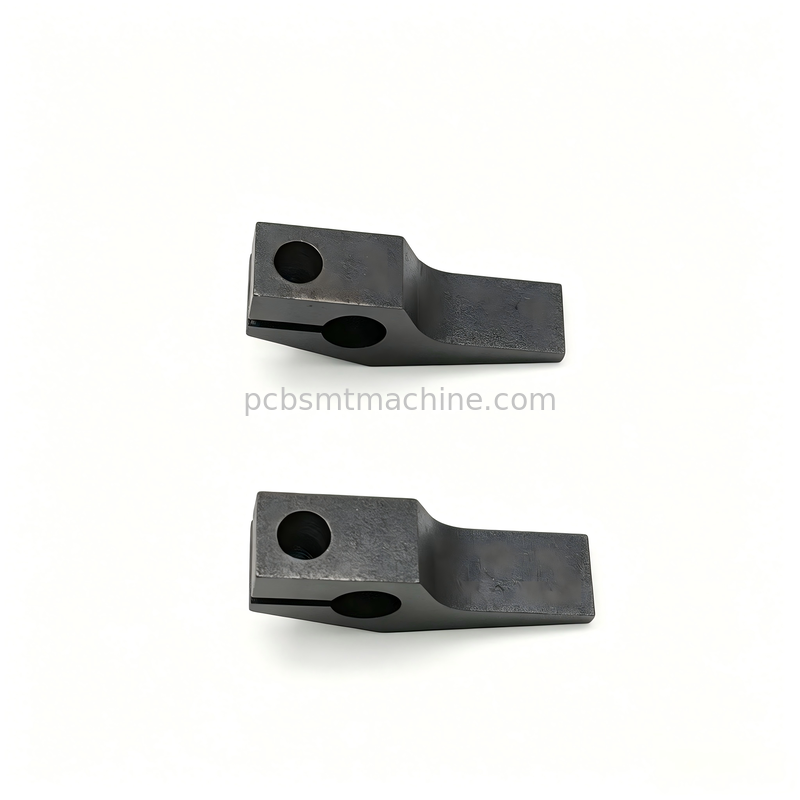

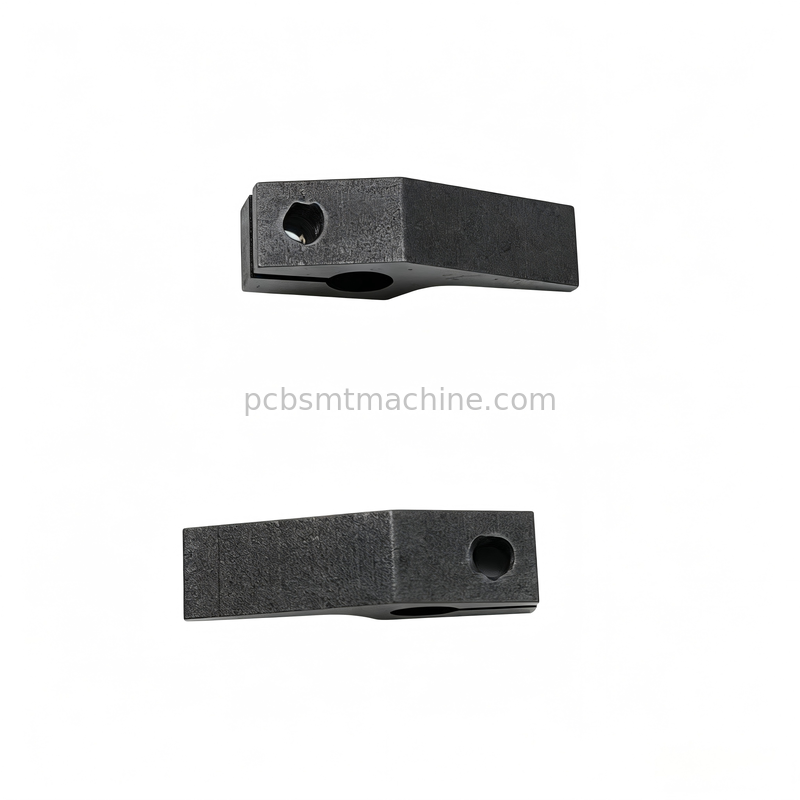

X02P30006 Lever | Mechanical Transmission Lever for Panasonic AVK/RH Series AI Insertion Machine

1.Product Description & Introduction
X02P30006 Lever is a replacement mechanical component compatible with Panasonic AVK, AVK2, AVK3, RH3 and RHS series AI insertion machines, widely used on PCB through-hole assembly production lines.
Made of quenched and blackened carbon steel, this part serves as the core pusher transmission component inside the insertion head for positioning and driving feeding sliders. It fully complies with original factory dimension standards and can directly replace damaged original levers to eliminate feeding jamming and positioning deviation faults of SMT insertion equipment.
2.Product Specifications

3. Product Features

1. Precision OEM dimensions, directly installable on Panasonic AI inserters without secondary processing
2. High-hardness carbon steel material, wear-resistant for long-term continuous mass production
3. Stable slotted locking structure to avoid loose feeding and machine downtime caused by jamming
4. Dual-hole positioning design ensures smooth and stable transmission of AVK insertion machines
5. Blackened anti-rust surface, suitable for humid workshop production environments
6. Compatible with multiple machine models to cut spare part inventory costs for electronics factories

4. FAQ
Q1: Which equipment is X02P30006 Lever compatible with?
A1: It fits Panasonic AVK, AVK2, AVK3, RH3, RHS AI insertion machines for through-hole assembly.
Q2: What is the function of this transmission lever?
A2: It acts as the internal pusher actuator of the insertion head to drive and lock PCB feeding sliders.
Q3: Can it directly replace original Panasonic spare parts?
A3: Yes. It matches OEM parts in both size and material, no trimming or modification required during installation.
Q4: What are the advantages of choosing X02P30006 Lever?
A4: Made of wear-resistant high-hardness material, it effectively solves equipment problems including inaccurate positioning and feeding blockage.
Q5: Do you support bulk purchasing for factory stock?
A5: We supply full-series spare parts for Panasonic AI inserters in bulk with steady stock for electronics manufacturers worldwide.
